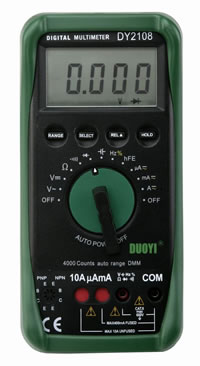

Auto Range Digital Multimeter DY2108

Main Features

  • Patented mis-operation prevention: terminal shutter interlock mechanism, patent code: ZL 01 21 5021.5
  • Feature rich design DMM with up to 11 functions
  • Heavy duty rubber holster
  • Input fuse protection
  • Data hold, auto power off, low battery warning
  • LCD max. 4000 counts

Specifications

Auto Range Digital Multimeter
MODEL DY2108
DC V 400m/4/40/400/600V ±(1.0%+3)
AC V 400m/4/40/400/600V ±(1.5%+3)
DC A 400µ/4000µ/40m/400m/10A ±(1.5%+5)
AC A 400µ/4000µ/40m/400m/10A ±(1.5%+5)
Resistance 400/4K/40K/400K/4M/40MΩ ±(1.5%+5)
Capacitance 4n/40n/400n/4µ/40µ/200µF ±(4.0%+5)
Frequency 9.999/99.99/999.9/9.9999K/99.99K/999.9K/9.9999MHz ±(1.0%+5)
Duty Test 1%-99%
Diode Test yes
Transistor Test yes
Continuity Buzzer <50Ω
Voltage Test Input Impedance 10MΩ
Data Hold yes
Function Symbol Display yes
Low Battery Warning yes
Auto Power Off yes
LCD MAX. Count 4000
Terminal Shutter Interlock yes

General Characteristics

Power 6F22(9V)
Product Size 198*98*58 mm
Product Net Weight 700g
Standard individual packing gift box
Standard Quantity per Carton 30 pcs.
Measurement of Standard Carton 480*370*488mm (0.087 CBM)
Gross weight of Standard Carton 25.5kgs
