DY5106A Digital 5000V Insulation Resistance Tester

: preg_replace(): The /e modifier is deprecated, use preg_replace_callback instead in /home2/dyinstru/public_html/duoyi/includes/unicode.inc on line 311.
  • CE EMC/LVD

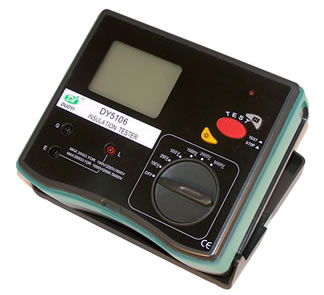

Insulation Tester DY5106A(5000V) Standard casing of Insulation Tester DY5106A(500V)

Features

  • Six test voltages cover 100V, 250V, 500V, 1000V, 2500V, 5000V for flexible application
  • Measure insulation resistance to 200GΩ with 0.01mΩ resolution
  • Data hold, auto range, auto power off, LCD background light
  • Complete with test leads, heavy duty carry case and six 1.5V AA batteries

Specifications

Insulation Tester
MODEL DY5106A
Testing Voltage 100/250/500V 1000/2500/5000V
Insulation Resistance 0.1~20GΩ ±(3%+5) 0.1~200GΩ ±(5%+10)
Resolution 0.01MΩ
Auto Range yes
Function Symbol Display yes
Data Hold yes
Low Battery Warning yes
Max. Diplay 1999
LCD Backglight yes

General Characteristics

Power AA1.5V*8
Product Size 190*155*75 mm
Product Net Weight 900g
Standard Accessories insulation test wires DY38 carry case DY5
Standard individual packing Carry case
Standard Quantity per Carton 6 pcs.
Measurement of Standard Carton 645*360*276mm (0.064 CBM)
Gross weight of Standard Carton 14kgs
