DY5103A Digital 5000V Insulation 3 Phase Tester

: preg_replace(): The /e modifier is deprecated, use preg_replace_callback instead in /home2/dyinstru/public_html/duoyi/includes/unicode.inc on line 311.
  • CE EMC/LVD

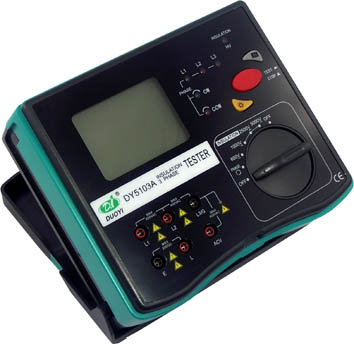

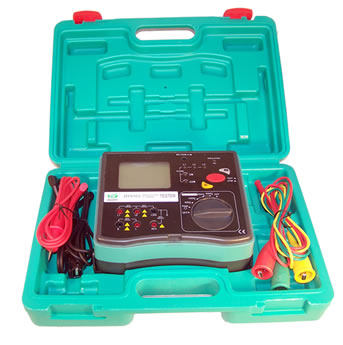

Insulation 3 Phase Tester DY5103A Standard casing of Insulation 3 Phase Tester DY5103A

Features

  • Test voltage 1000V, 2500V, 5000V
  • Measure insulation resistance to 200GΩ with 0.01mΩ resolution
  • AC voltage measurement to 600V
  • Check phase sequence and phase status
  • Data hold, auto range, auto power off, LCD background light
  • Complete with test leads, phase wire, heavy duty carry case and six 1.5V AA batteries

Specifications

Insulation 3 Phase Tester
MODEL DY5103A
Testing Voltage 1000/2500/5000V
Insulation Resistance 0.1~200GΩ ±(3%+5)
Phase Rotation Check yes
AC V 700V ±(2%+5)
Resolution 0.01MΩ
Auto Range yes
Function Symbol Display yes
Data Hold yes
Low Battery Warning yes
Max Displays. 1999
LCD Backlight yes

General Characteristics

Power AA1.5V*8
Product Size 190*155*75 mm
Product Net Weight 900g
Standard Accessories phase sequence test wires DY40 insulation test wires DY38 carry case DY5
Standard individual packing Carry case
Standard Quantity per Carton 6 pcs.
Measurement of Standard Carton 645*360*276mm (0.064 CBM)
Gross weight of Standard Carton 14kgs
