DY4200 Digital Ground Resistance Tester

: preg_replace(): The /e modifier is deprecated, use preg_replace_callback instead in /home2/dyinstru/public_html/duoyi/includes/unicode.inc on line 311.
  • CE EMC/LVD

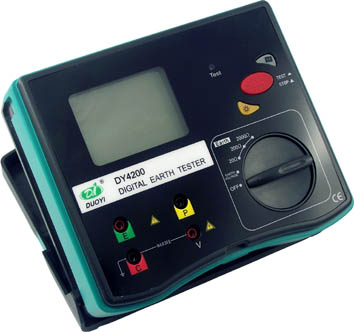

Digital Earth Resistance Tester DY4200 Digital Earth Resistance Tester DY4200

Features

  • Ground resistance measurements from 0.01Ω to 2000Ω with 0.01Ω resolution
  • LCD backlight
  • Data hold, auto power off, low battery warning
  • Complete with test leads, auxiliary earth bars, heavy duty case and six 1.5V batteries

Specifications

Digital Earth Resistance Tester
MODEL DY4200
Earth Ground Resistance 0/20/200/2000Ω ±(2%+3)
Earth Voltage 0~30V ±(3%+5)
Resolution 0.01Ω
Data Hold yes
Working LED Indicator yes
Function Symbol Display yes
Low Battery Warning yes
LCD Background Light yes

General Characteristics

Power AA1.5Vx8(UM3)
Product Size 190 x 155 x 75 mm
Product net weight approx. 900g
Standard Accessories earth bars and wires DY39 simplified test wires for earth resistance carry case DY5
Standard individual packing Carry case
Standard Quantity per Carton 5 pcs.
Measurement of Standard Carton 645*360*276mm (0.064 CBM)
Gross weight of Standard Carton 13kgs
