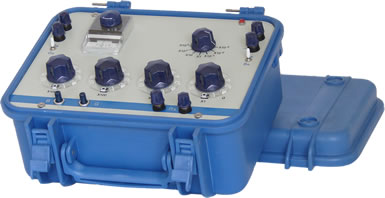

DC wheatstone bridge DY-B23A

Features

  • Base on Wheatstone bridge circuit ranged from 0Ω - 11.110MΩ with resolution 1mΩ
  • Built-in null-indicator and internal power supply, testing anywhere
  • Solid and heavy duty box
DC WHEATSTONE BRIDGE DY-B23A
Multiplying Power Effective Span RESOLUTION ACCURACY
x10-3 0 ~ 11.110Ω 1mΩ 0.05
x10-2 0 ~ 111.10Ω 10mΩ 0.05
x10-1 0 ~ 1.1110kΩ 100mΩ 0.05
x1 0 ~ 11.110kΩ 0.05
x10 0 ~ 111.10kΩ 10Ω 0.05
x102 0 ~ 1.1110MΩ 100Ω 0.1
x103 0 ~ 5.000MΩ 1000Ω 0.1
5 ~ 11.110Ω 1000Ω 0.1
  • total range:0Ω - 11.110MΩ
  • power supply: DC4.5V (AA1.5V * 3)
  • null indicator power DC9V (6F22 * 1)
  • dimension 320*280*170 mm
  • weight: 3kg
